Display of % in Y axis

[Glenn Hall]

I have created a new sub portfolio and have retrieved stock information. When opening the portfolio and the graph is displayed, I find the feature ‘Display % Along Right Y Axis’ not appearing on the graph.

In viewing other portfolios that have the Y axis % display I have duplicated their Graph Display Options. But no success.

I have tried all the view/scale options with negative results.

[Mark]

Hi Glenn Hall,

Which graph type are you viewing? If you're not sure, look under the "Graphs" menu (while your graph window has the focus), to see which graph type has a check mark next to it.

[Glenn Hall]

Mark,

The graph type listed in the 'Graphs' menu is 'Portfolio Value' which is the same as other Graphs that do have the display of % in Y axis in their graphs.

I tried other listing in the graph type but they did not address the problem

Glenn

[Mark]

Hi Glenn,

Is your displayed line just a flat line in the middle of the graph? If it only plots a single data point like this it won't display a right side scale. If so, check your date range so that you're plotting more than 1 date with different values. If not, maybe you can email us a screenshot of your graph, as I'm not sure what else would be causing this.

Is your graph window fully visible? Maybe the right side is off the screen?

[Glenn Hall]

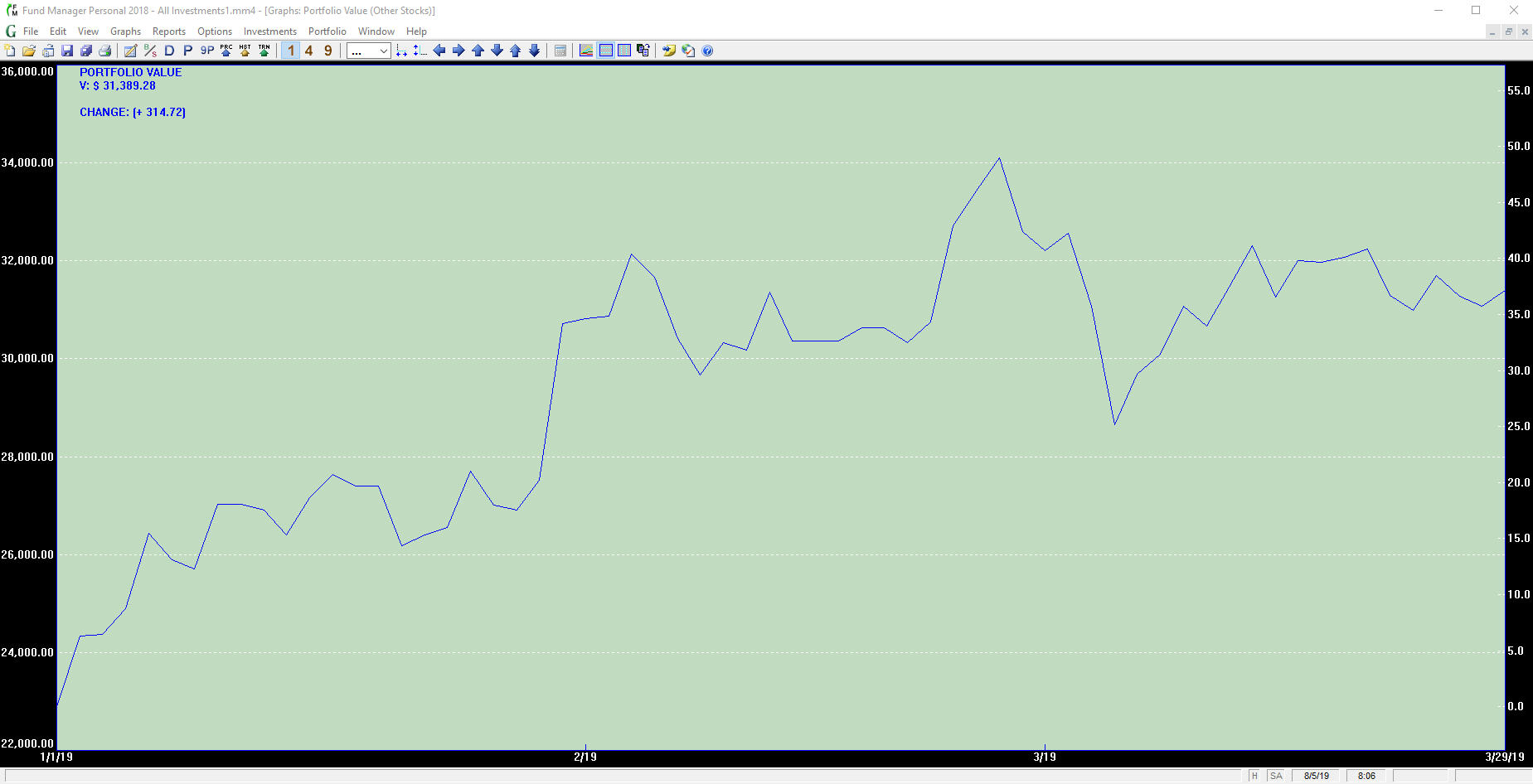

FM 2018_Good Page .jpg (147.19 KiB) Viewed 2265 times

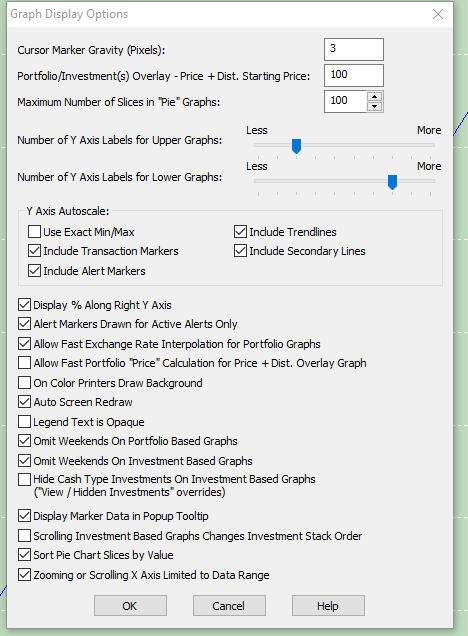

FM 2018_Prob Pg_Grph Disp Options.jpg (77.1 KiB) Viewed 2265 times

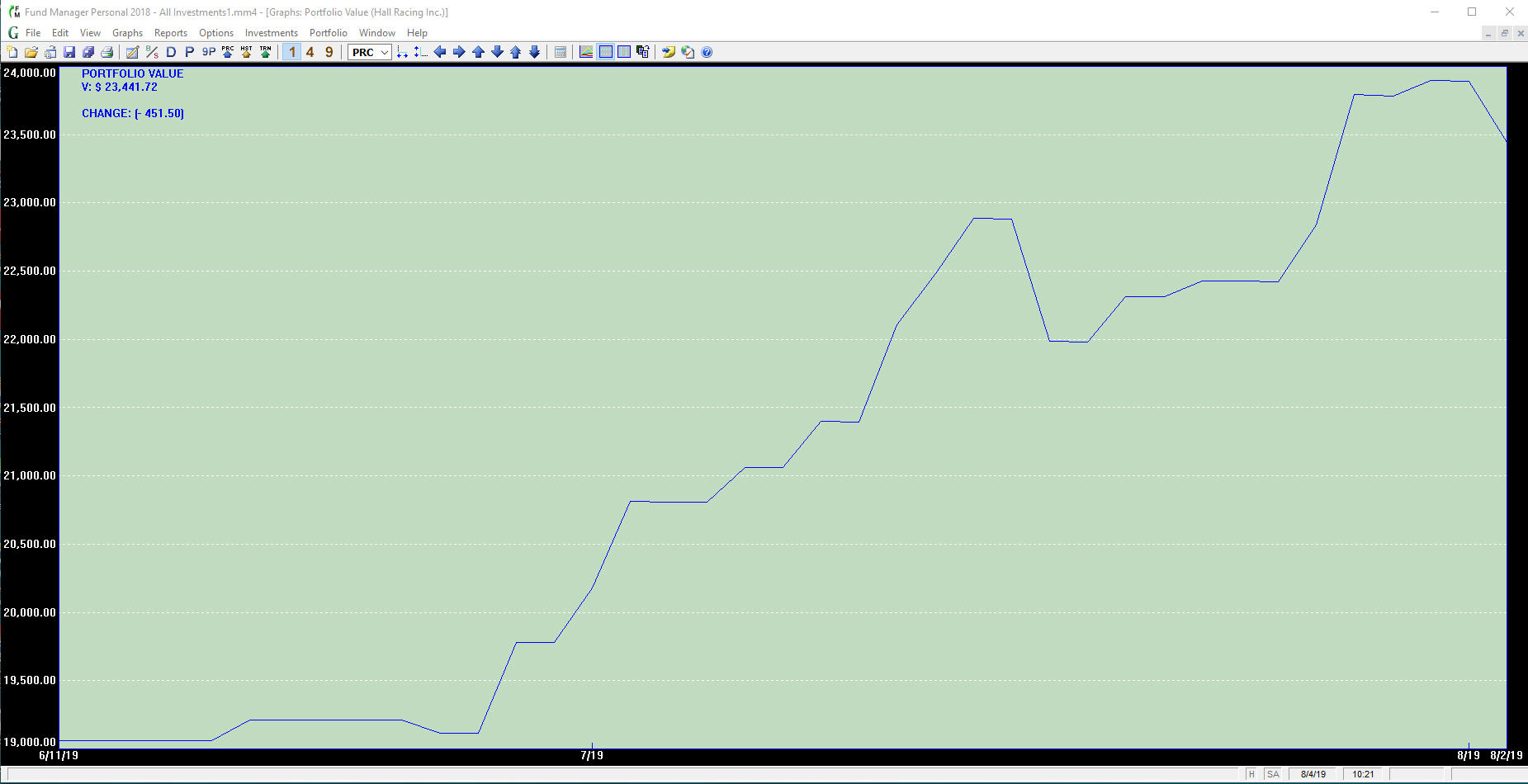

FM 2018_Prob Pg .jpg (150.54 KiB) Viewed 2265 times

Mark,

In pulling up the display options of both graphs, they appear to be the same Option list.

#1 I downloaded the 2018 FM and installed
#2 Removed a sub folder
#3 Created a new folder (which is the problem one)
#4 Downloaded stock information
#5 Problem
#6 I have downloaded and re-installed FM 2018
#7 I have changed some of settings in the Option List to see if that corrected problem
#8 Changed Options back to settings that problem graph started in

Hopefully this info will help solve the problem

Glenn

[Mark]

Hi Glenn,

The problem is that you're plotting since the first transaction date. This means, the beginning portfolio value for the % calculation is $0, thus percentages can't be displayed. Here is the documentation on this feature to label the right side with %:

Label the right Y axis with percentage change since the beginning of the graph. Available in graph types where it makes sense to label with a percentage. The baseline (0%) reference is the value that would be plotted on the day prior to the starting graph date, such that the %'s are inclusive of the starting graph date.

So, to fix this, just change the starting graph date to 1 or more days later.
